KD-180T edge concrete grinder

  • KD-180T edge concrete grinder
  • KD-180T edge concrete grinder
  • KD-180T edge concrete grinder
  • KD-180T edge concrete grinder
  • KD-180T edge concrete grinder
KD-180T edge concrete grinder KD-180T edge concrete grinder KD-180T edge concrete grinder

KD-180T edge concrete grinder

  • Power:1.5KW(2.0HP)
  • Voltage:220v/380v
  • Phase:1/3 Phase
  • Revolution:1410r/min
  • Weight:45KG
  • Package:680*220*600mm

This new model has upgraded the internal structure, body and color of the gearbox. The improvement of the water tank is mainly aesthetic considerations, and the machine rack is changed to the S type, which is from a practical point of view. The S-shape can be combined with the stability of the center of gravity after the machine is placed on the ground and the angle of the angle when the bottom is replaced. The internal structure of the gearbox is changed to create a more efficient drive and a more durable structure.

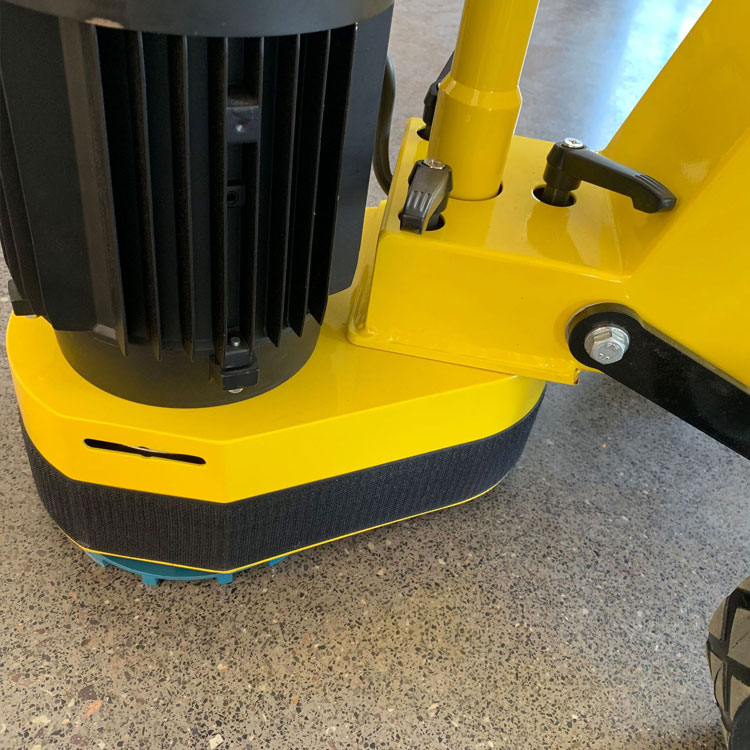

  • All-aluminum alloy gearbox and gear-driven planetary head reduce noise and impove surface flatness
  • The S-shaped shelf design allows for a larger angle to be seen when changing the grinding disc, and the grounding is more stable.
  • Another model 788-4 can easily move with power assist system, easy to carry ,save manpower.
  • Iron block transforms the center of gravity through the silider, not only increase the weight of the machine, but also help you lift the bottom and carry it easily.

Model 180T 280 250 250D 250H KD-450
Voltage 220v/380v 220v/380v 220v/380v 220v/380v / 220v/380v
Phase 1/3 Phase 1/3 Phase 1/3 Phase 1/3 Phase Honda GXV160 1/3 Phase
Power 1.5KW(2.0HP) 2.2KW(3HP) 2.2KW(3HP) 2.2KW(3HP) 4KW(5.5HP) 3KW(4HP)
Revolution 1410r/min 1410r/min 570r/min 1410r/min 930r/min 550r/min
Weight 45KG 62KG 78KG 75KG 125KG 118KG
Package 680*220*600mm 500*410*410mm 700*440*770mm 500*410*410mm 700*440*770mm 900*520*850mm

The concrete grinder for edge grinding is the industry standard, designed for grinding concrete and stone materials, make your work in cost-efficient way to meet your different requirement job.

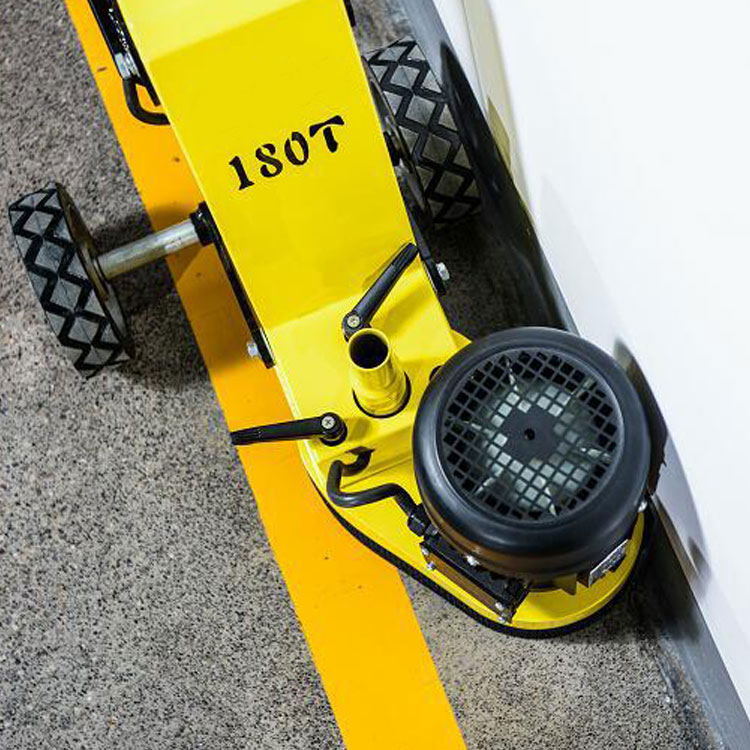

180T is specially designed for edging; 250D, 280 is suitable for small area grinding and auxiliary edging; 250 optional gasoline engine is an essential machine for outdoor grinding; 450 is suitable for small construction sites, proofing, etc.
1.The exquisite aluminum shell and protective cover ensure both toughness and partial cushioning. The bottom is loaded with high-performance cushion steel blocks that refuse to move up and down, reducing jitter and noise.
2.The bottom is recommended to install the bowl mill. In order to meet the habits of domestic builders, our company has another four-inch grinding disc to install the multi-function disc.
3.Equipped with WONDER motor (higher than Siemens), quality is worry-free

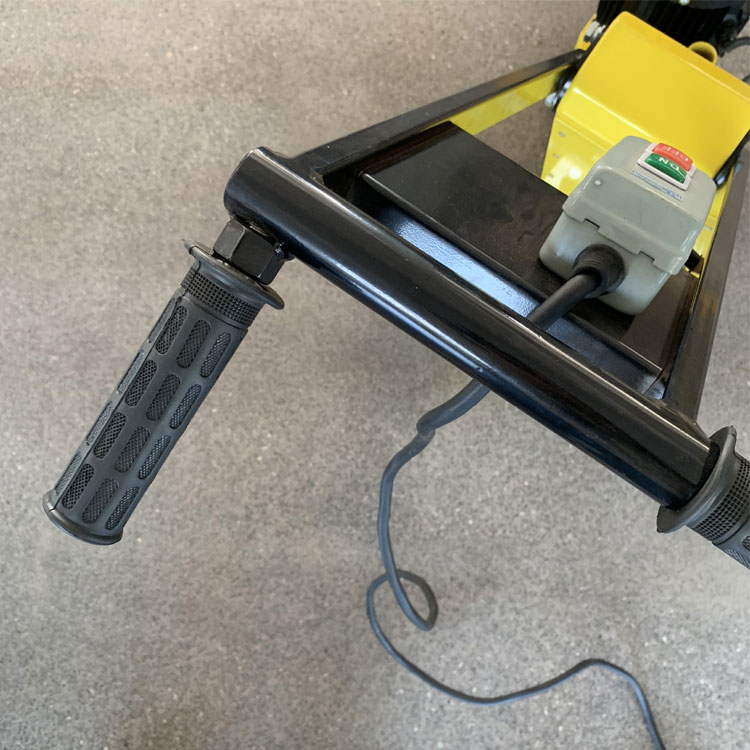

4.The arm can be folded and placed in the trunk of the car for easy carrying and handling.

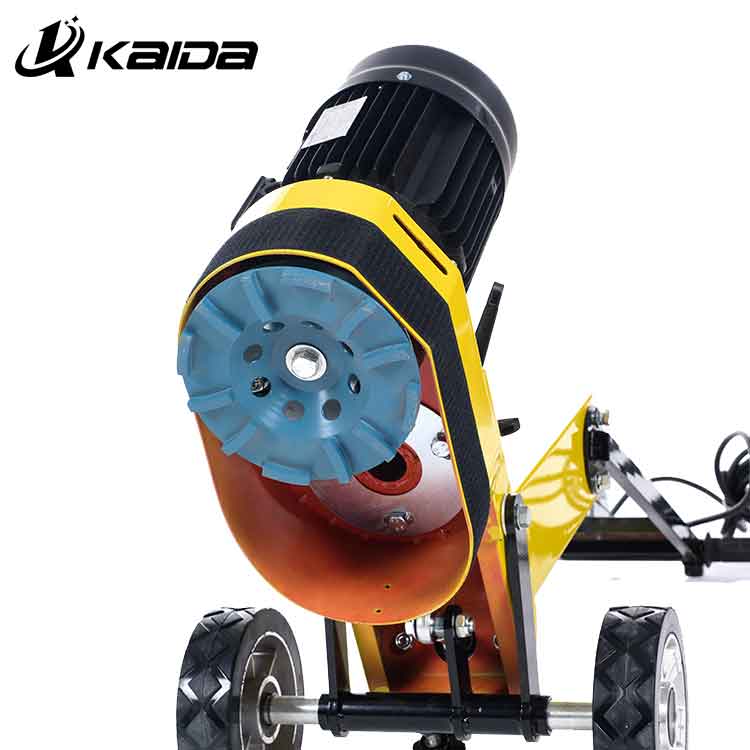

5.The part of the cover can be removed and the screws can be unscrewed for edging.

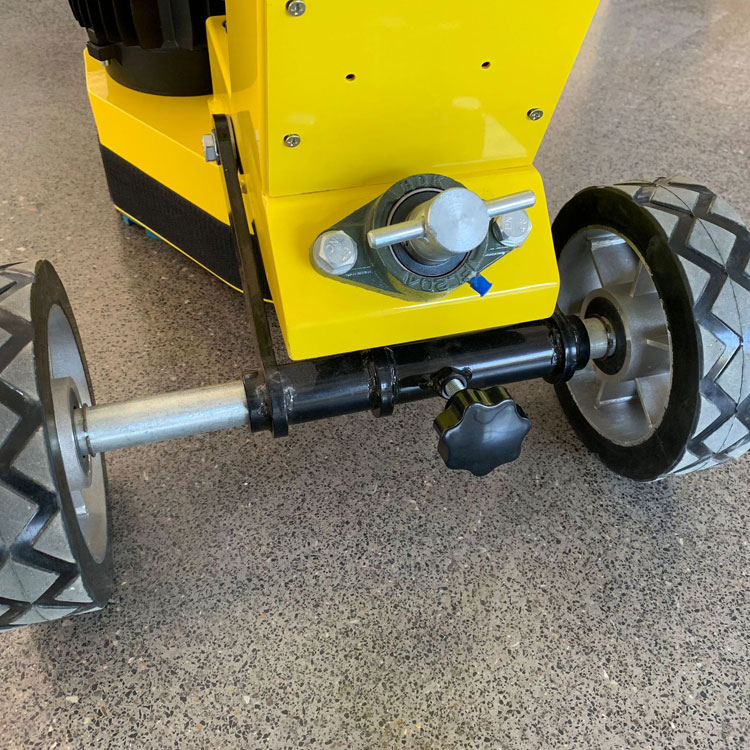

6.Inlet, dust suction, wheel height adjustment, etc., pay attention to detail design.
